PL 80.35 STM Feeder for Xerox VersaLink C7020 C7025 C7030 C7000 Printer
Posted by Xwk Tech on

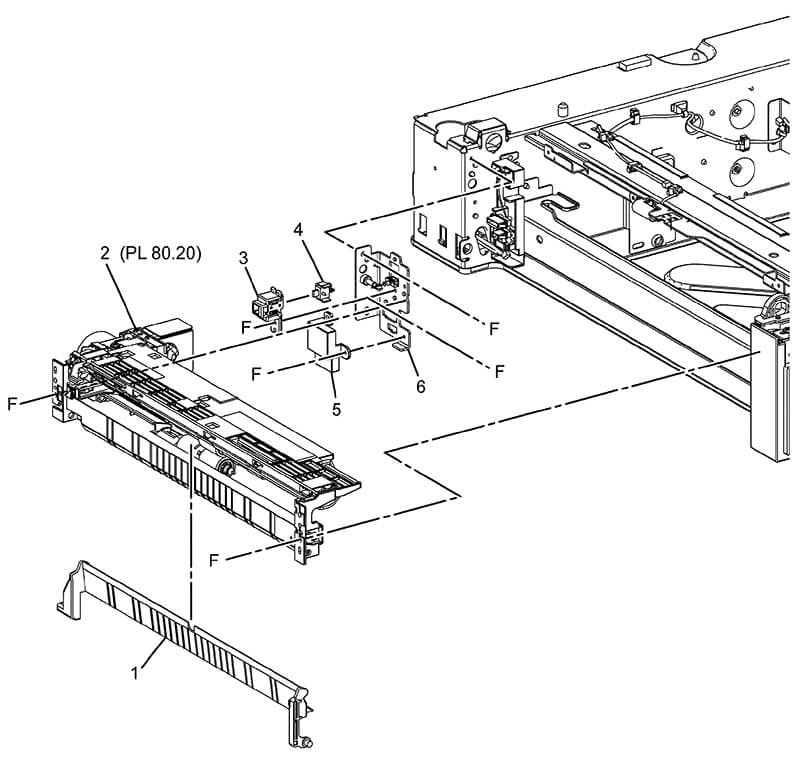

PL 80.35 STM Feeder
Note: HFSI. To reset the HFSI count, refer to dC135.
**This PL 80.35 is from Xerox Service Manual. All brand names and trademarks are their respective owner's property.**
You may be also interested in below toner and drum chip (CRUM) for Xerox VersaLink C7020, C7025, C7030, C7000.
Toner Chip (For North America and West Europe Region):
• 106R03741 106R03744 106R03743 106R03742
• 106R03757 106R03760 106R03759 106R03758
• 106R03737 106R03740 106R03739 106R03738
Toner Chip (For South America and East Europe Region):
• 106R03749 106R03752 106R03751 106R03750
• 106R03745 106R03748 106R03747 106R03746
• 106R03765 106R03768 106R03767 106R03766
Toner Chip (For Metered Machine):
• 106R03733 106R03736 106R03735 106R03734
Drum Chip:
• 113R00780 113R00782
| Item | Part | Description |
| 1 | 054E33803 | Feed chute |
| 2 | 859K09730 | Tray 2 feeder assembly (See Note) |
| 3 | - | IL cover (Not Spared) |
| 4 | 110E12220 | TM left hand interlock switch (S77-306) |
| 5 | - | ESD STM cover (Not Spared) |
| 6 | - | Latch bracket assembly (Not Spared) |
**This PL 80.35 is from Xerox Service Manual. All brand names and trademarks are their respective owner's property.**
